Panels constructed with fabrication technology used in the aerospace industry to create lightweight, extremely strong panels. Each panel sandwiches a stable metal honeycomb between two skins of smooth, coil-coated aluminum. Layers are bonded together with high-quality adhesives to form a monolithic mechanical construction.

The result: Optimal quality control. Maximum flexibility. The ability to withstand the most severe environmental conditions.

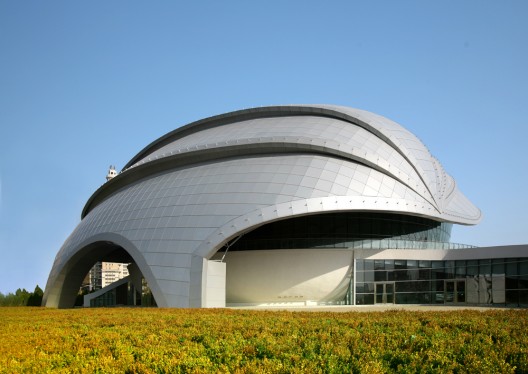

Dalian Shell Museum

Features & Benefits at a Glance

- Open-joint rainscreen façade systems control rain penetration, maintain ventilation, and provide thermal insulation.
- Honeycomb construction enables exceptionally large, flat modules up to 1500 mm (4.9 ft) wide and 4500 mm (14.8 ft) long.
- Metal panels fully integrate with QuadroClad glass and resin panels on the same plane.
- Ideal for both new construction and over-cladding projects. Full CAD and project management support available.

1. Ventilation
2. Drainage Channel
3. QuadroClad Pannel
4. Cavity
5. Thermal Insulation
6. Loadbearing Wall

Canadian Embassy

Specifications

External Skin: Aluminum coil-coated with Luxacote® or PVF2 finish (0.95 mm/~0.037 in). Other base metals and finishes available.
Internal Skin: Aluminum coil-coated with protective finish (0.5 mm/~0.02 in).
Core Structure: Aluminum honeycomb core.
Edge Extrusion: Extruded aluminum, mitered and crimped to seal each panel,with integrated fixing detail for easy attachment to support structures.
Wall Bracket: Available for insulation thicknesses of 100 mm, 150 mm, and 200 mm (4 in, 6 in, 8 in). Slotted holes allow for adjustment of +/- 25 mm (+/- 1 in) in depth and +/- 10 mm (+/-0.375 in.)in horizontal plane.
Support Rail: Extruded aluminum profile for maximum rigidity where required. Rails also serve as vertical drainage channel. Standard length 7,200 mm (283.5 in).
Fixing Plates: Fully adjustable in vertical directions, with integrated anti-vibration gaskets.
Panel Sizes: Complete range of sizes up to 1,500 mm x 4,500 mm (59 in x 117 in).
Windows: Twin-color powder-coated or anodized aluminum profiles. Windows are thermally improved and incorporate a range of mullions and transoms.

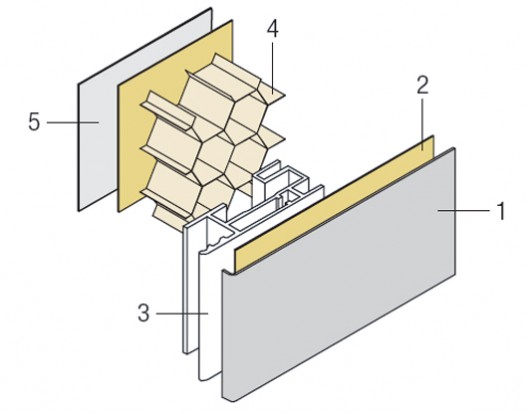

Panel Composition

1. Pre-coated and roll formed aluminum external skin
2. Adhesive file
3. Aluminum extrusion
4. Aluminum honeycomb
5. Pre-coated aluminum internal skin

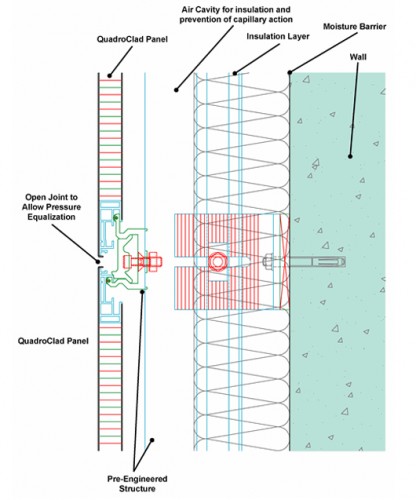

Technical Drawings
